Yamaha TT-R 90 E 20072007 Yamaha TT-R 90 E specifications, pictures, reviews and rating |

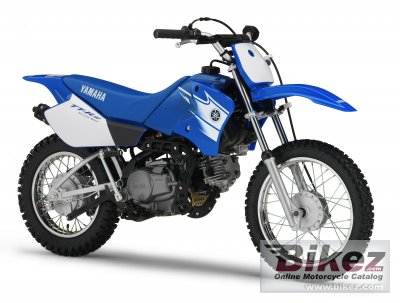

 2007 Yamaha TT-R 90 E. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| This semi-automatic, four-stroke is perfect when it´s time to step it up a notch. |
| General information | |
|---|---|
| Model name | Yamaha TT-R 90 E |
| Model year | 2007 |
| Category | Enduro / offroad |
| Price as new | US$ 1749. MSRP depends on country, taxes, accessories, etc. |
| Rating | 2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 89.0 ccm (5.43 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 8.5:1 |
| Bore x stroke | 47.0 x 51.8 mm (1.9 x 2.0 inches) |
| Fuel system | Carburettor. 16mm Mikuni |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 26 mm telescopic fork |
| Front wheel travel | 109 mm (4.3 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 94 mm (3.7 inches) |
| Front tire | 2.00-14 |
| Rear tire | 2.00-14 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 63.0 kg (139.0 pounds) |
| Seat height | 625 mm (24.6 inches) If adjustable, lowest setting. |
| Overall height | 866 mm (34.1 inches) |
| Overall length | 1524 mm (60.0 inches) |
| Overall width | 605 mm (23.8 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Wheelbase | 1039 mm (40.9 inches) |
| Fuel capacity | 4.16 litres (1.10 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Yamaha TT-R 90 E discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2007 Yamaha TT-R 90 E discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Reliability for the 2007 Yamaha TT-R 90 E:  (72.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
