General information |
|
Motorcycle name
|

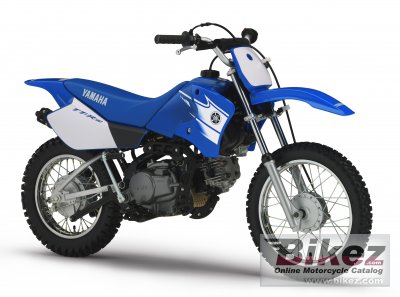

Yamaha TT-R 90 |
|
Year of manufacture
|
2007 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
89.0 ccm (5.43 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
5.5 HP (4.0 kW)) @ 7000 RPM |
|
Torque
|
6.1 Nm (0.6 kgf-m or 4.5 ft.lbs) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
47.0 x 51.8 mm (1.9 x 2.0 inches) |
|
Fuel system
|
Carburettor. Mikuni VM16/1 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc and centrifugal automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube backbone |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Swingingarm (monocross) |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
95 mm (3.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
60.0 kg (132.3 pounds) |
|
Power/weight ratio
|
0.0915 HP/kg |
|
Seat height
|
625 mm (24.6 inches) If adjustable, lowest setting. |
|
Overall height
|
865 mm (34.1 inches) |
|
Overall length
|
1525 mm (60.0 inches) |
|
Overall width
|
605 mm (23.8 inches) |
|
Fuel capacity
|
4.20 litres (1.11 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
