Yamaha TT-R 90 20022002 Yamaha TT-R 90 specifications, pictures, reviews and rating |

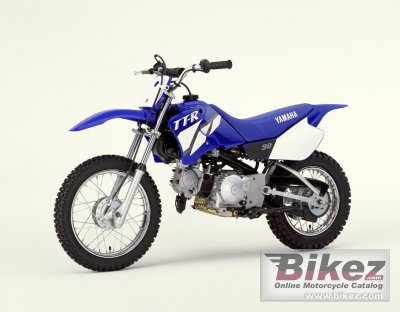

 2002 Yamaha TT-R 90. Picture by Yamaha. Published with permission.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Yamaha TT-R 90 |
| Year model | 2002 |
| Type | Cross / motocross |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 89.0 ccm (5.43 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 5.6 HP (4.1 kW)) @ 7000 RPM |
| Torque | 6.1 Nm (0.6 kgf-m or 4.5 ft.lbs) @ 4000 RPM |
| Compression | 8.5:1 |
| Bore x stroke | 47.0 x 51.8 mm (1.9 x 2.0 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front brakes | Expanding brake |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 60.0 kg (132.3 pounds) |
| Power/weight ratio | 0.0933 HP/kg |
| Seat height | 625 mm (24.6 inches) If adjustable, lowest setting. |
| Overall height | 865 mm (34.1 inches) |
| Overall length | 1525 mm (60.0 inches) |
| Overall width | 605 mm (23.8 inches) |
| Ground clearance | 157 mm (6.2 inches) |
| Wheelbase | 1040 mm (40.9 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha TT-R 90 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Yamaha TT-R 90 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Fun-factor for the 2002 Yamaha TT-R 90:  (80.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
