Yamaha's profilation of this bike |
A great bike for the casual off-road rider that wants a full-size machine with a lower seat height. The smooth, 4-stroke engine with electric start pumps out predictable power aimed at easing both beginning and smaller, intermediate riders into the off-road experience.
|
General information |
Model name
|

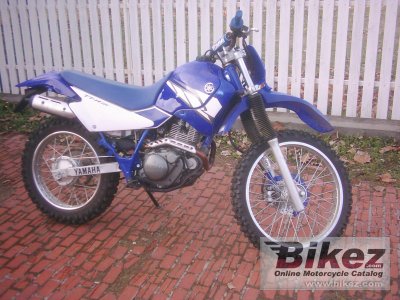

Yamaha TT-R 225 |
Year model
|
2005 |
Type
|
Enduro / offroad |
Price as new | US$ 2899. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
223.0 ccm (13.61 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
70.0 x 58.0 mm (2.8 x 2.3 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
229 mm (9.0 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
193 mm (7.6 inches) |
Front tire
|
80/100-21 |
Rear tire
|
100/100-18 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Seat height
|
869 mm (34.2 inches) If adjustable, lowest setting. |
Overall height
|
1179 mm (46.4 inches) |
Overall length
|
2103 mm (82.8 inches) |
Overall width
|
833 mm (32.8 inches) |
Ground clearance
|
290 mm (11.4 inches) |
Wheelbase
|
1372 mm (54.0 inches) |
Fuel capacity
|
10.21 litres (2.70 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
