Yamaha TT-R 225 20022002 Yamaha TT-R 225 specifications, pictures, reviews and rating |

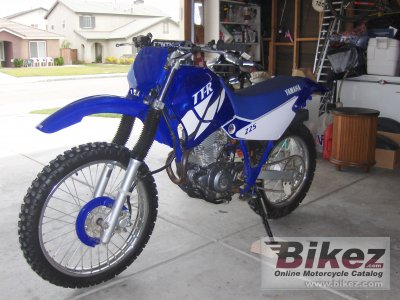

 2002 Yamaha TT-R 225. A Ramirez. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Yamaha TT-R 225 |
| Model year | 2002 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Torque | 17.7 Nm (1.8 kgf-m or 13.1 ft.lbs) @ 6500 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 70.0 x 58.0 mm (2.8 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 40 mm Mikuni CV with throttle position sensor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Single shock |
| Front tire | 80/100-18 |
| Rear tire | 100/100-18 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 820 mm (32.3 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Other specifications | |
