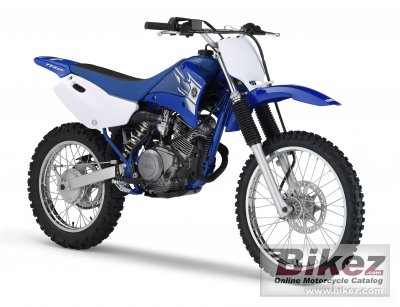

Yamaha TT-R 125 LW 20072007 Yamaha TT-R 125 LW specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The TT-R90’s quiet and reliable four-stroke engine produces a smooth band of strong yet gentle power that’s ideal for younger riders. |
| General information | |
|---|---|
| Model name | Yamaha TT-R 125 LW |
| Year model | 2007 |
| Type | Enduro / offroad |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 9.7 HP (7.0 kW)) @ 8000 RPM |
| Torque | 9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni VM20/1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond shaped |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | 70/100-M17 |
| Rear tire | 90/100-M14 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 78.0 kg (172.0 pounds) |
| Power/weight ratio | 0.1237 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1055 mm (41.5 inches) |
| Overall length | 1830 mm (72.0 inches) |
| Overall width | 785 mm (30.9 inches) |
| Fuel capacity | 6.60 litres (1.74 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Yamaha TT-R 125 LW discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2007 Yamaha TT-R 125 LW discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Racing track capabilities for the 2007 Yamaha TT-R 125 LW:  (46.2 out of 100)Click here for complete rating. |
|
