Yamaha's profilation of this bike |

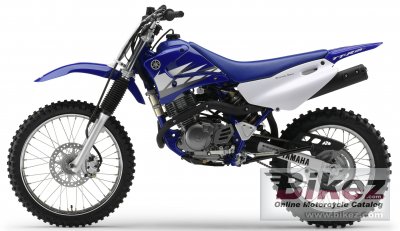

Styled after the YZ426F, the TT-R125L and TT-R125LE (electric start) are great off-road machines for mid-size riders. Powerful, 124cc, 4-stroke powerplant provides a broad powerband for friendly off-road performance in a wide range of trail conditions. And full-size knobby tires offer superb grip and exceptional wear. LE model... convenient electric start. |
General information |
Motorcycle name
|
Yamaha TT-R 125 L - LE |
Year
|
2005 |
Category
|
Enduro / offroad |
Price as new | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.0 ccm (7.57 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
10.0:1 |
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
Valves per cylinder
|
5 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
180 mm (7.1 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
168 mm (6.6 inches) |
Front tire
|
70/100-19 |
Rear tire
|
90/100-16 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
Overall height
|
1085 mm (42.7 inches) |
Overall length
|
1885 mm (74.2 inches) |
Overall width
|
792 mm (31.2 inches) |
Ground clearance
|
295 mm (11.6 inches) |
Wheelbase
|
1270 mm (50.0 inches) |
Fuel capacity
|
6.58 litres (1.74 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
Comments
|
LE model with electric start and adjustable suspensions. Price USD 2699. |
