Yamaha TT-R 125 E 20052005 Yamaha TT-R 125 E specifications, pictures, reviews and rating |

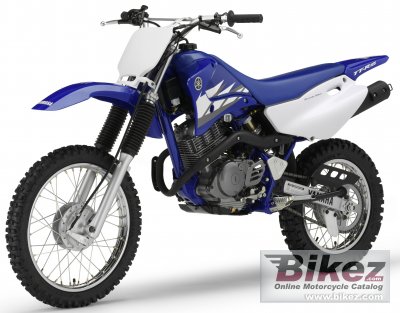

 2005 Yamaha TT-R 125 E. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| A motorcycle for off-road riders (and little brother to the 125L and 125LE) the TT-R125E has slightly smaller wheels and tires, thus able to fit shorter riders. A powerful, 124cc, 4-stroke powerplant provides a broad powerband for friendly off-road performance in a wide range of trail conditions. |
| General information | |
|---|---|
| Model | Yamaha TT-R 125 E |
| Year of manufacture | 2005 |
| Type | Enduro / offroad |
| Price as new | US$ 2399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 70/100-19 |
| Rear tire | 90/100-14 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1054 mm (41.5 inches) |
| Overall length | 1829 mm (72.0 inches) |
| Overall width | 785 mm (30.9 inches) |
| Ground clearance | 264 mm (10.4 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 6.58 litres (1.74 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Comments | Electric start. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Yamaha TT-R 125 E discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2005 Yamaha TT-R 125 E for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Fun-factor for the 2005 Yamaha TT-R 125 E:  (80.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
