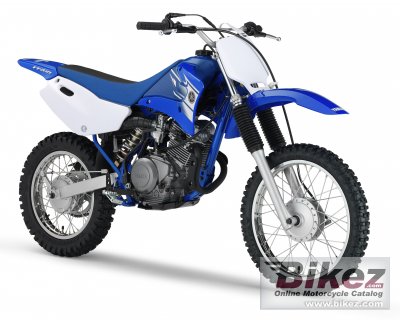

Yamaha TT-R 125 20072007 Yamaha TT-R 125 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Everyone should have the opportunity to enjoy off road riding, and the four stroke TT-R125 is aimed at teenage riders and also adults who are new to off road. Available with a choice of small or large wheels, this responsive lightweight is built to give hours of family fun. |
| General information | |
|---|---|
| Model | Yamaha TT-R 125 |
| Model year | 2007 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 123.7 ccm (7.55 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 9.7 HP (7.0 kW)) @ 8000 RPM |
| Torque | 9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni VM20/1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond shaped |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | 70/100-M17 |
| Rear tire | 90/100-M14 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 77.0 kg (169.8 pounds) |
| Power/weight ratio | 0.1253 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1055 mm (41.5 inches) |
| Overall length | 1830 mm (72.0 inches) |
| Overall width | 785 mm (30.9 inches) |
| Fuel capacity | 6.60 litres (1.74 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
