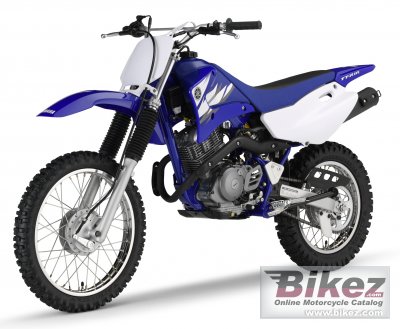

Yamaha TT-R 125 20062006 Yamaha TT-R 125 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| If you’re looking for the best way to discover the fun and freedom of riding off road, there can be no better introduction than the Yamaha TT-R125. Its smooth-running 125cc 4-stroke engine makes learning fun, and for optimum comfort this reliable lightweight is equipped with plush suspension and a deeply padded seat. |
| General information | |
|---|---|
| Model name | Yamaha TT-R 125 |
| Year model | 2006 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 123.7 ccm (7.55 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 9.7 HP (7.0 kW)) @ 8000 RPM |
| Torque | 9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Swinging arm (monocross) |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 70/100-17 |
| Rear tire | 90/100-14 |
| Front brakes | Single disc |
| Diameter | 110 mm (4.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 84.0 kg (185.2 pounds) |
| Power/weight ratio | 0.1149 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1055 mm (41.5 inches) |
| Overall length | 1830 mm (72.0 inches) |
| Overall width | 785 mm (30.9 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha TT-R 125 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2006 Yamaha TT-R 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Design and look for the 2006 Yamaha TT-R 125:  (73.0 out of 100)Click here for complete rating. |
|
