Yamaha TT-R 125 20022002 Yamaha TT-R 125 specifications, pictures, reviews and rating |

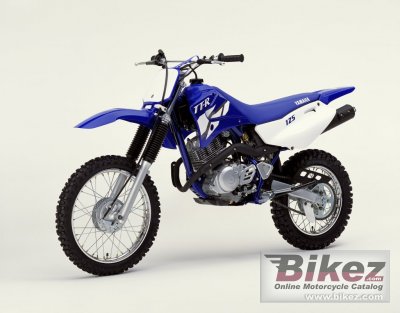

![]() 2002 Yamaha TT-R 125. Picture by Yamaha. Published with permission.. Submit more pictures.
|
General information | |
---|---|
Model: | Yamaha TT-R 125 |
Year: | 2002 |
Category: | Cross / motocross |
Rating: | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission | |
Displacement: | 123.7 ccm (7.55 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 9.8 HP (7.2 kW)) @ 8000 RPM |
Torque: | 9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) @ 6500 RPM |
Compression: | 10.0:1 |
Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
Fuel control: | Single Overhead Cams (SOHC) |
Cooling system: | Air |
Chassis, suspension, brakes and wheels | |
Front wheel travel: | 180 mm (7.1 inches) |
Rear wheel travel: | 160 mm (6.3 inches) |
Front tyre: | 70/100-17 |
Rear tyre: | 90/100-14 |
Front brakes: | Expanding brake |
Diameter: | 110 mm (4.3 inches) |
Rear brakes: | Expanding brake |
Diameter: | 110 mm (4.3 inches) |
Physical measures and capacities | |
Dry weight: | 74.0 kg (163.1 pounds) |
Power/weight ratio: | 0.1324 HP/kg |
Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
Overall height: | 1030 mm (40.6 inches) |
Overall length: | 1839 mm (72.4 inches) |
Overall width: | 795 mm (31.3 inches) |
Ground clearance: | 265 mm (10.4 inches) |
Wheelbase: | 1240 mm (48.8 inches) |
Other specifications | |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
Parts finder |
Chaparral provides online schematics & OEM parts |
Motocross parts | Parts and accessories available from Revzilla Motocross |
Ask questions | Join the 02 Yamaha TT-R 125 discussion group or the general Yamaha discussion group. |
Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2002 Yamaha TT-R 125 or advertise any other MC for sale. You can list all 2002 Yamaha TT-R 125 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
Rating sample for this Yamaha bike | |
Design and look for the 2002 Yamaha TT-R 125:![]() ![]() Click here for complete rating. You can also compare bikes. |
![]() |
