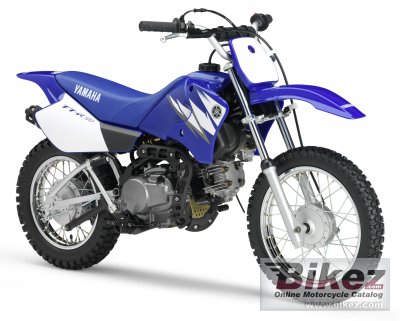

Yamaha TT-R90 20062006 Yamaha TT-R90 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Featuring a semi-automatic gearbox and handlebar-mounted brake levers – just like on a bicycle – the Yamaha TT-R90 has been specially designed for smaller children. As well as being a whole lot of fun to ride, this 4-stroke minibike helps kids to develop important machine handling skills at a young age – skills which will undoubtedly be of use in the future. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT-R90 |
| Year model | 2006 |
| Type | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 89.0 ccm (5.43 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 5.5 HP (4.0 kW)) @ 7000 RPM |
| Torque | 6.1 Nm (0.6 kgf-m or 4.5 ft.lbs) |
| Compression | 8.5:1 |
| Bore x stroke | 47.0 x 51.8 mm (1.9 x 2.0 inches) |
| Fuel system | Carburettor. Mikuni TMX38 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Premix |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Swinging arm (monocross) |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 70/90-M17 |
| Rear tire | 90/90-M14 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 60.0 kg (132.3 pounds) |
| Power/weight ratio | 0.0915 HP/kg |
| Seat height | 625 mm (24.6 inches) If adjustable, lowest setting. |
| Overall height | 865 mm (34.1 inches) |
| Overall length | 1525 mm (60.0 inches) |
| Overall width | 605 mm (23.8 inches) |
| Ground clearance | 172 mm (6.8 inches) |
| Wheelbase | 1040 mm (40.9 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Starter | Kick |
