Yamaha's profilation of this bike |
Three-speed gearbox with automatic centrifugal clutch makes learning to shift gears a breeze. Convenient electric starter for effortless starting. |
General moped information |
Model
|

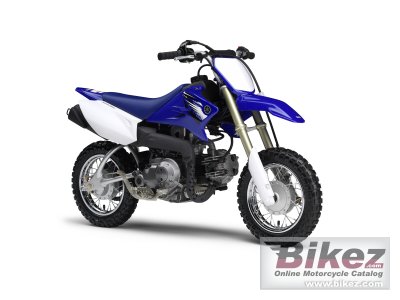

Yamaha TT-R50E |
Year
|
2012 |
Category
|
Enduro / offroad |
Price as new | US$ 1490. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
49.0 ccm (2.99 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
36.0 x 48.6 mm (1.4 x 1.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Mikuni VM11 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
3-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Automatic |
Chassis, suspension, brakes and wheels |
Front suspension
|
Inverted telescopic fork |
Front wheel travel
|
97 mm (3.8 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
71 mm (2.8 inches) |
Front tire
|
2.50-10 |
Rear tire
|
2.50-10 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
56.7 kg (125.0 pounds) |
Seat height
|
554 mm (21.8 inches) If adjustable, lowest setting. |
Overall height
|
775 mm (30.5 inches) |
Overall length
|
1306 mm (51.4 inches) |
Overall width
|
594 mm (23.4 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
930 mm (36.6 inches) |
Fuel capacity
|
3.10 litres (0.82 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
Starter
|
Electric |
Factory warranty
|
90 Day (Limited Factory Warranty) |
Update specs | Report missing specs or required updates. |
