Yamaha TT-R50E 20102010 Yamaha TT-R50E specifications, pictures, reviews and rating |

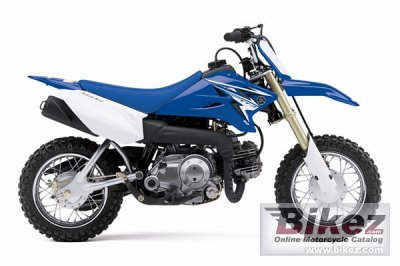

 2010 Yamaha TT-R50E. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission. Big YZ styling meets little people’s stature; the seat’s only 21.8 inches from the dirt. |
| General moped information | |
|---|---|
| Model | Yamaha TT-R50E |
| Year | 2010 |
| Category | Enduro / offroad |
| Price as new | US$ 1299. MSRP depends on country, taxes, accessories, etc. |
| Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 36.0 x 48.6 mm (1.4 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni® VM11 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Inverted telescopic fork |
| Front wheel travel | 97 mm (3.8 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 71 mm (2.8 inches) |
| Front tire | 70/10-.M19 |
| Rear tire | 90/10-.M16 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 56.7 kg (125.0 pounds) |
| Seat height | 554 mm (21.8 inches) If adjustable, lowest setting. |
| Overall height | 775 mm (30.5 inches) |
| Overall length | 1306 mm (51.4 inches) |
| Overall width | 594 mm (23.4 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 925 mm (36.4 inches) |
| Fuel capacity | 3.10 litres (0.82 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | See US insurance cost for this bike.
|
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha TT-R50E discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2010 Yamaha TT-R50E discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
