General moped information |
|
Model name
|

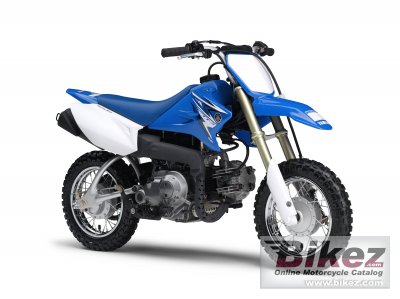

Yamaha TT-R50E |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 1299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
36.0 x 48.6 mm (1.4 x 1.9 inches) |
|
Fuel system
|
Carburettor. Mikuni® VM11 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
3-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Inverted telescopic fork |
|
Front wheel travel
|
97 mm (3.8 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
71 mm (2.8 inches) |
|
Front tire
|
70/10-..M17 |
|
Rear tire
|
90/10-..M14 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
56.7 kg (125.0 pounds) |
|
Seat height
|
554 mm (21.8 inches) If adjustable, lowest setting. |
|
Overall height
|
775 mm (30.5 inches) |
|
Overall length
|
1306 mm (51.4 inches) |
|
Overall width
|
594 mm (23.4 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
925 mm (36.4 inches) |
|
Fuel capacity
|
3.10 litres (0.82 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Electric |
