Yamaha TT-R50E 2008

2008 Yamaha TT-R50E specifications, pictures, reviews and rating

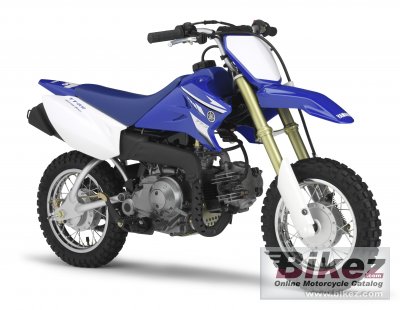

2008 Yamaha TT-R50E. Picture credits - Yamaha. Submit more pictures.

2008 Yamaha TT-R50E

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

Yamaha's profilation of this bike

Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission.

General moped information
Model:	Yamaha TT-R50E
Year:	2008
Category:	Enduro / offroad
Rating:	55.1 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):	US$ 1249. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:	49.00 ccm (2.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	9.5:1
Bore x stroke:	36.0 x 48.6 mm (1.4 x 1.9 inches)
Fuel system:	Carburettor
Fuel control:	Single Overhead Cams (SOHC)
Ignition:	CDI
Cooling system:	Air
Gearbox:	3-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Rake (fork angle):	26.0°
Front suspension:	Inverted telescopic fork
Front wheel travel:	97 mm (3.8 inches)
Rear suspension:	Single shock
Rear wheel travel:	71 mm (2.8 inches)
Front tyre:	2/10-4
Rear tyre:	2/10-4
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Dry weight:	54.0 kg (119.0 pounds)
Seat height:	554 mm (21.8 inches) If adjustable, lowest setting.
Overall height:	775 mm (30.5 inches)
Overall length:	1,306 mm (51.4 inches)
Overall width:	594 mm (23.4 inches)
Ground clearance:	135 mm (5.3 inches)
Wheelbase:	925 mm (36.4 inches)
Fuel capacity:	310.37 litres (82.00 gallons)
Other specifications
Starter:	Electric
Further information
