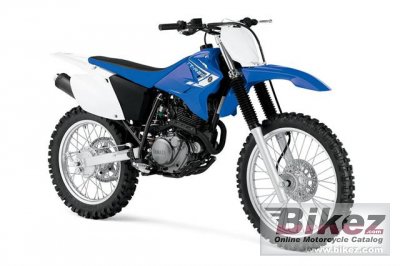

Yamaha TT-R230 20132013 Yamaha TT-R230 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power, make the TT-R230 a great choice for beginner and intermediate riders. Competition-style flat seat/tank junction for great rider mobility. |
| General information | |
|---|---|
| Model name | Yamaha TT-R230 |
| Model year | 2013 |
| Category | Enduro / offroad |
| Price as new | US$ 3990. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 70.0 x 58.0 mm (2.8 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate wet clutch |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond-type-design |
| Front suspension | Telescopic fork |
| Front wheel travel | 239 mm (9.4 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 221 mm (8.7 inches) |
| Rear tire | 100/100-18 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 113.9 kg (251.0 pounds) |
| Seat height | 871 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height | 1181 mm (46.5 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1384 mm (54.5 inches) |
| Fuel capacity | 7.95 litres (2.10 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Factory warranty | 90 Day (Limited Factory Warranty) |
