General information |
|
Model
|

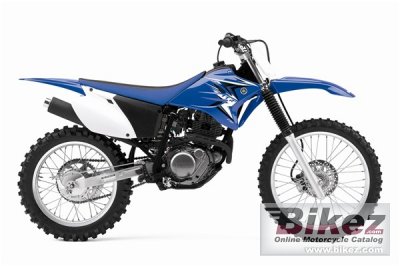

Yamaha TT-R230 |
|
Model year
|
2010 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 3699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
223.0 ccm (13.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
70.0 x 58.0 mm (2.8 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC-CDI |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
241 mm (9.5 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
221 mm (8.7 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/100-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
116.1 kg (256.0 pounds) |
|
Seat height
|
869 mm (34.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1181 mm (46.5 inches) |
|
Overall length
|
2065 mm (81.3 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1384 mm (54.5 inches) |
|
Fuel capacity
|
7.94 litres (2.10 US gallons) |
|
Other specifications |
|
Color options
|
Blue/White |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
