Yamaha TT-R230 20092009 Yamaha TT-R230 specifications, pictures, reviews and rating |

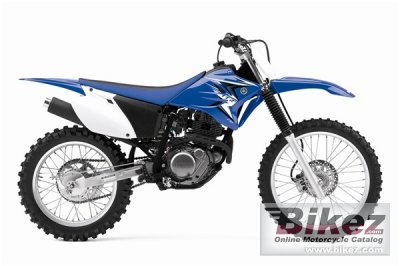

2009 Yamaha TT-R230. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power, make the TT-R230 a great choice for beginner and intermediate riders. |
| General information | |
|---|---|
| Model | Yamaha TT-R230 |
| Year of manufacture | 2009 |
| Type | Enduro / offroad |
| Price as new | US$ 3699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 70.0 x 58.0 mm (2.8 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 241 mm (9.5 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 221 mm (8.7 inches) |
| Front tire | 80/80-21 |
| Rear tire | 100/90-18 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 116.1 kg (256.0 pounds) |
| Seat height | 869 mm (34.2 inches) If adjustable, lowest setting. |
| Overall height | 1181 mm (46.5 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1384 mm (54.5 inches) |
| Fuel capacity | 7.94 litres (2.10 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha TT-R230 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Yamaha TT-R230 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Yamaha bike | |
Racing track capabilities for the 2009 Yamaha TT-R230:  (53.4 out of 100)Click here for complete rating. |
|
