Yamaha TT-R230 20082008 Yamaha TT-R230 specifications, pictures, reviews and rating |

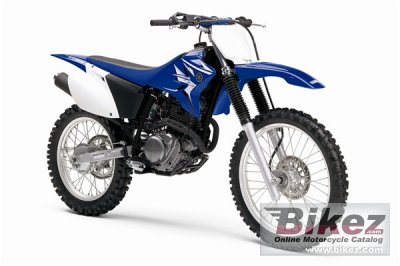

 2008 Yamaha TT-R230. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders. |
| General information | |
|---|---|
| Model name | Yamaha TT-R230 |
| Year | 2008 |
| Category | Enduro / offroad |
| Price as new | US$ 3549. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 223.0 ccm (13.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 70.0 x 58.0 mm (2.8 x 2.3 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.0° |
| Front suspension | Telescopic fork |
| Front wheel travel | 241 mm (9.5 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 221 mm (8.7 inches) |
| Front tire | 80/80-21 |
| Rear tire | 100/80-18 |
| Front brakes | Single disc |
| Diameter | 194 mm (7.6 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 107.0 kg (236.0 pounds) |
| Seat height | 869 mm (34.2 inches) If adjustable, lowest setting. |
| Overall height | 1181 mm (46.5 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1384 mm (54.5 inches) |
| Fuel capacity | 7.94 litres (2.10 US gallons) |
| Other specifications | |
| Color options | Blue/white |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 Yamaha TT-R230 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2008 Yamaha TT-R230 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Offroad capabilities for the 2008 Yamaha TT-R230:  (69.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
