Yamaha TT-R125LWE 20132013 Yamaha TT-R125LWE specifications, pictures, reviews and rating |

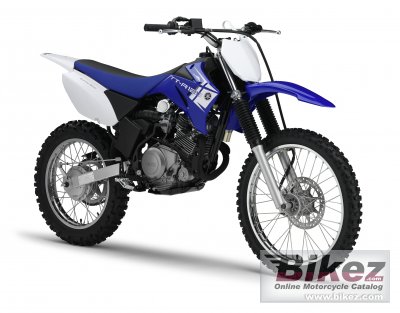

 2013 Yamaha TT-R125LWE. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Available in Large Wheel (19in/16in) or regular (17in/14in) versions, there’s no tool quite like a TT-R125 for discovering the joy of the world outside your fence. With its sharp steering, comfort and great terrain holding, it’s an unsurpassed mid-sized playbike that rapidly grows confidence and enjoyment in a rider. |
| General information | |
|---|---|
| Model name | Yamaha TT-R125LWE |
| Year model | 2013 |
| Type | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni VM20 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate wet clutch |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond-type-design |
| Front suspension | 31mm Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 168 mm (6.6 inches) |
| Front tire | 70/100-19 |
| Rear tire | 90/100-16 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 85.0 kg (187.4 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1085 mm (42.7 inches) |
| Overall length | 1885 mm (74.2 inches) |
| Overall width | 795 mm (31.3 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 6.06 litres (1.60 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Starter | Electric |
| Comments | Sold in Australia. |
