General information |
|
Motorcycle name
|

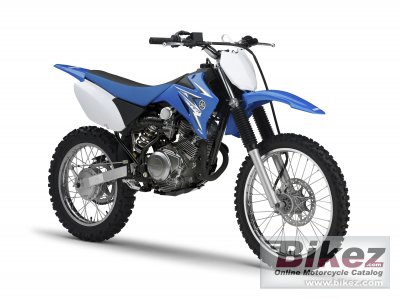

Yamaha TT-R125LW |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
123.7 ccm (7.55 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
9.7 HP (7.0 kW)) @ 9800 RPM |
|
Torque
|
9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni VM20/1 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI (digital) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond shaped |
|
Trail
|
107 mm (4.2 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
168 mm (6.6 inches) |
|
Front tire
|
70/0-M19 |
|
Rear tire
|
90/0-M16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
84.0 kg (185.2 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1085 mm (42.7 inches) |
|
Overall length
|
1885 mm (74.2 inches) |
|
Overall width
|
795 mm (31.3 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric & kick |
|
Comments
|
LW is Large Wheel. Optional electric start version called LW/E. |
