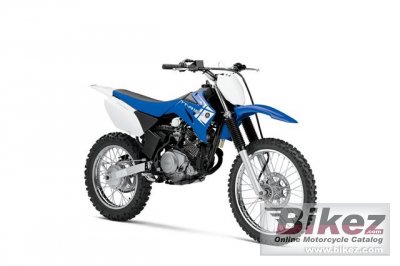

Yamaha TT-R125LE 20132013 Yamaha TT-R125LE specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Big fun for the whole family in a small package, the YZ-styled, four-stroke-powered TT-R125LE begs to be ridden by everyone from bigger kids to adults. A seat height of less than 32 inches makes this bike accessible to most riders, but more than 11 inches of ground clearance and long-travel suspension at both ends make it a serious trail bike as well. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT-R125LE |
| Year model | 2013 |
| Type | Enduro / offroad |
| Price as new | US$ 3290. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni VM20 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate wet clutch |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond-type-design |
| Front suspension | 31mm Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 168 mm (6.6 inches) |
| Front tire | 70/100-M19 |
| Rear tire | 90/100-M16 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 89.8 kg (198.0 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1085 mm (42.7 inches) |
| Overall length | 1885 mm (74.2 inches) |
| Overall width | 795 mm (31.3 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 6.06 litres (1.60 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Factory warranty | 90 Day (Limited Factory Warranty) |
