General information |
|
Model
|

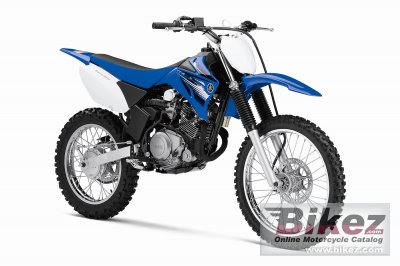

Yamaha TT-R125LE |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 3190. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni VM20 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet, multidisc |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Constant-mesh 5-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
168 mm (6.6 inches) |
|
Front tire
|
70/100-19 |
|
Rear tire
|
90/100-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
89.8 kg (198.0 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1085 mm (42.7 inches) |
|
Overall length
|
1885 mm (74.2 inches) |
|
Overall width
|
795 mm (31.3 inches) |
|
Ground clearance
|
295 mm (11.6 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
6.06 litres (1.60 US gallons) |
|
Other specifications |
|
Color options
|
Blue/White |
|
Starter
|
Electric |
|
Factory warranty
|
90 Days |
