Yamaha TT-R125LE 20102010 Yamaha TT-R125LE specifications, pictures, reviews and rating |

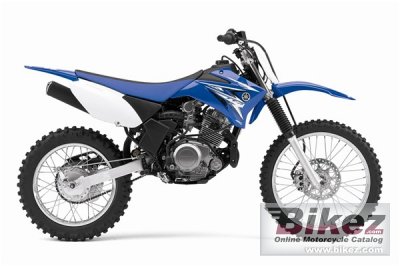

 2010 Yamaha TT-R125LE. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The full-boat “LE” model features pushbutton electric start, 19- and 16-inch wheels for great handling, an aluminum swingarm, adjustable suspension calibrated for aggressive and/or bigger riders and a 220mm front disc brake. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT-R125LE |
| Year | 2010 |
| Category | Enduro / offroad |
| Price as new | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni® VM20 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 168 mm (6.6 inches) |
| Front tire | 70/100-M19 |
| Rear tire | 90/90-M16 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 89.8 kg (198.0 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1085 mm (42.7 inches) |
| Overall length | 1885 mm (74.2 inches) |
| Overall width | 795 mm (31.3 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 6.05 litres (1.60 US gallons) |
| Other specifications | |
| Color options | Blue/white |
| Starter | Electric |
