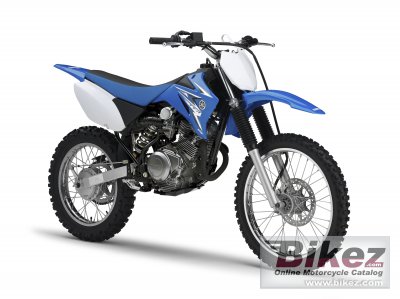

Yamaha TT-R125E 20092009 Yamaha TT-R125E specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| “E” model features pushbutton electric starting, a 17- and 14-inch wheel combination for con and #64257;dence-building handling for novice riders and drum brakes for consistent, predictable stops. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT-R125E |
| Year model | 2009 |
| Type | Enduro / offroad |
| Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni® VM20 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 70/80-M17 |
| Rear tire | 90/90-M14 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 89.8 kg (198.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1059 mm (41.7 inches) |
| Overall length | 1844 mm (72.6 inches) |
| Overall width | 785 mm (30.9 inches) |
| Ground clearance | 264 mm (10.4 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 6.05 litres (1.60 US gallons) |
| Other specifications | |
| Color options | Blue/white |
| Starter | Electric |
