General information |
|
Model name
|

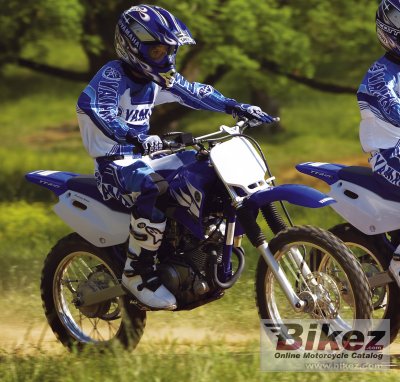

Yamaha TT-R125 - LW |
|
Model year
|
2006 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
123.7 ccm (7.55 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
9.7 HP (7.0 kW)) @ 8000 RPM |
|
Torque
|
9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni TMX38 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Premix |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
Swinging arm (monocross) |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
70/90-M17 |
|
Rear tire
|
90/90-M14 |
|
Front brakes
|
Single disc |
|
Diameter
|
110 mm (4.3 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
84.0 kg (185.2 pounds) |
|
Power/weight ratio
|
0.1149 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1055 mm (41.5 inches) |
|
Overall length
|
1830 mm (72.0 inches) |
|
Overall width
|
785 mm (30.9 inches) |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1250 mm (49.2 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
