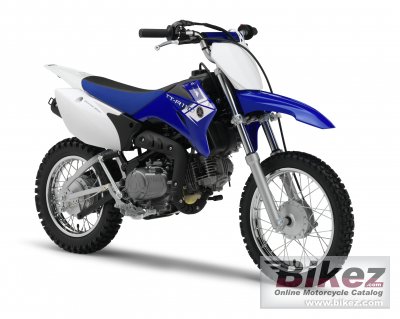

Yamaha TT-R110E 20132013 Yamaha TT-R110E specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| A seat height of only 26.4 inches makes this one accessible to most riders, but 7.1 inches of ground clearance and great suspension at both ends means it can go places. Four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain. |
| General information | |
|---|---|
| Model | Yamaha TT-R110E |
| Year | 2013 |
| Category | Enduro / offroad |
| Price as new | US$ 2240. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 110.0 ccm (6.71 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.3:1 |
| Bore x stroke | 51.0 x 54.0 mm (2.0 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni® VM16 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate wet clutch |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond-type-design |
| Front suspension | 31mm Telescopic fork, coil spring/oil damper, 4.5-in travel |
| Rear suspension | Swingarm (Monocross ), coil spring/gas-oil damper, 4.3-in travel |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 72.1 kg (159.0 pounds) |
| Seat height | 671 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 922 mm (36.3 inches) |
| Overall length | 1565 mm (61.6 inches) |
| Overall width | 681 mm (26.8 inches) |
| Ground clearance | 180 mm (7.1 inches) |
| Wheelbase | 1080 mm (42.5 inches) |
| Fuel capacity | 3.79 litres (1.00 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Factory warranty | 90 Day (Limited Factory Warranty) |
