Yamaha TT-R110E 20122012 Yamaha TT-R110E specifications, pictures, reviews and rating |

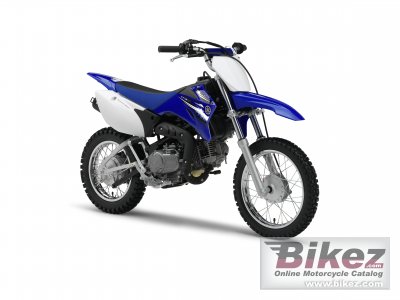

2012 Yamaha TT-R110E. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| Torquey/powerful 110cc air-cooled SOHC four-stroke powerplant is tuned for maximum off-road performance in a wide range of trail conditions. Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4000 rpm, max horsepower at 7500 rpm. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT-R110E |
| Year model | 2012 |
| Type | Enduro / offroad |
| Price as new | US$ 2190. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 110.0 ccm (6.71 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.3:1 |
| Bore x stroke | 51.0 x 54.0 mm (2.0 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni VM16 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet, multidisc |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multidisc |
| Driveline | Constant-mesh 4-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, coil spring/oil damper, 4.5-in travel |
| Rear suspension | Swingarm Monocross , coil spring/gas-oil damper, 4.3-in travel |
| Front tire | 2.50-14 |
| Rear tire | 3.00-16 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 71.7 kg (158.0 pounds) |
| Seat height | 671 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 922 mm (36.3 inches) |
| Overall length | 1565 mm (61.6 inches) |
| Overall width | 681 mm (26.8 inches) |
| Ground clearance | 180 mm (7.1 inches) |
| Wheelbase | 1080 mm (42.5 inches) |
| Fuel capacity | 3.79 litres (1.00 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Starter | Electric |
| Factory warranty | 90 Days |
