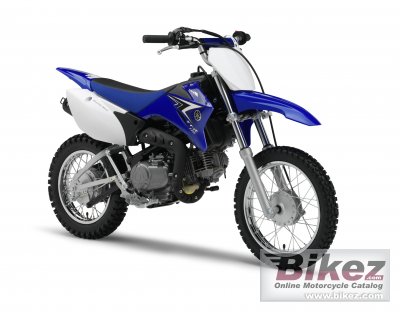

Yamaha TT-R110E 20112011 Yamaha TT-R110E specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance. |
| General information | |
|---|---|
| Model name | Yamaha TT-R110E |
| Year model | 2011 |
| Type | Enduro / offroad |
| Price as new | US$ 2150. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 110.0 ccm (6.71 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.3:1 |
| Bore x stroke | 51.0 x 54.0 mm (2.0 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni VM16 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Rigid steel backbone. Aluminum box-section swingarm with snail-type chain adjusters. |
| Front suspension | Telescopic fork, coil spring/oil damper |
| Front wheel travel | 114 mm (4.5 inches) |
| Rear suspension | Swingarm Monocross , coil spring/gas-oil damper |
| Rear wheel travel | 109 mm (4.3 inches) |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 71.7 kg (158.0 pounds) |
| Seat height | 671 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 922 mm (36.3 inches) |
| Overall length | 1565 mm (61.6 inches) |
| Overall width | 681 mm (26.8 inches) |
| Ground clearance | 180 mm (7.1 inches) |
| Wheelbase | 1080 mm (42.5 inches) |
| Fuel capacity | 3.79 litres (1.00 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Starter | Electric & kick |
| Factory warranty | 90 Day (Limited Factory Warranty) |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Battery | YTZ7S |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Yamaha TT-R110E discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2011 Yamaha TT-R110E discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Fun-factor for the 2011 Yamaha TT-R110E:  (82.4 out of 100)Click here for complete rating. |
|
