General information |
|
Model
|

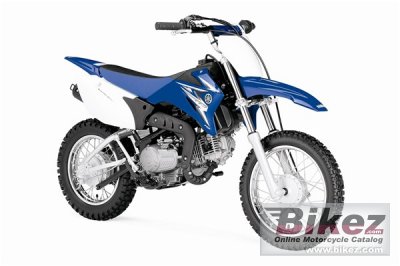

Yamaha TT-R110E |
|
Year of manufacture
|
2010 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 1949. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
110.0 ccm (6.71 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
51.0 x 54.0 mm (2.0 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni® VM16 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork, coil spring/oil damper, 4.5-in travel |
|
Rear suspension
|
Swingarm Monocross® |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
70/14-M19 |
|
Rear tire
|
90/12-M16 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
95 mm (3.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
71.7 kg (158.0 pounds) |
|
Seat height
|
671 mm (26.4 inches) If adjustable, lowest setting. |
|
Overall height
|
922 mm (36.3 inches) |
|
Overall length
|
1565 mm (61.6 inches) |
|
Overall width
|
681 mm (26.8 inches) |
|
Ground clearance
|
180 mm (7.1 inches) |
|
Wheelbase
|
1080 mm (42.5 inches) |
|
Fuel capacity
|
3.78 litres (1.00 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Electric |
