Yamaha's profilation of this bike |
As always with a TMAX, you get range-leading levels of sporty power, an easy-handling aluminium chassis, confidence-inspiring brakes and suspension, ultra-comfortable design, edgy bodywork and stylish instruments – all the high standards that knowledgeable riders have come to expect. |
General information |
Model name
|

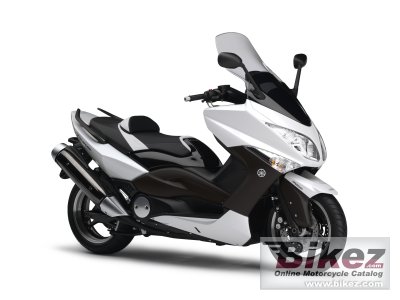

Yamaha TMAX White Max ABS |
Year
|
2010 |
Category
|
Scooter |
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
499.0 ccm (30.45 cubic inches) |
Engine type
|
Twin, four-stroke |
Power
|
42.9 HP (31.3 kW)) |
Torque
|
45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 4600 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
66.0 x 73.0 mm (2.6 x 2.9 inches) |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCI |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swingarm |
Front tire
|
120/70-15 |
Rear tire
|
160/60-15 |
Front brakes
|
Double disc. ABS |
Diameter
|
267 mm (10.5 inches) |
Rear brakes
|
Single disc. ABS |
Diameter
|
267 mm (10.5 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
226.0 kg (498.2 pounds) |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height
|
1445 mm (56.9 inches) |
Overall length
|
2195 mm (86.4 inches) |
Overall width
|
775 mm (30.5 inches) |
Ground clearance
|
125 mm (4.9 inches) |
Fuel capacity
|
15.00 litres (3.96 US gallons) |
