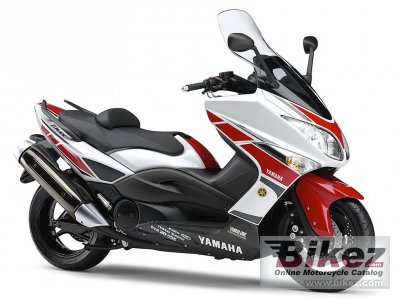

Yamaha TMAX WGP 50th Anniversary Edition 20122012 Yamaha TMAX WGP 50th Anniversary Edition specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Yamaha TMAX WGP 50th Anniversary Edition |
| Year | 2012 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | Forward-inclined parallel 2-cylinder |
| Power | 38.0 HP (27.7 kW)) @ 7500 RPM |
| Torque | 44.0 Nm (4.5 kgf-m or 32.5 ft.lbs) @ 6500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Wet mulitplate, centrifuge |
| Driveline | V-Belt Automatic |
| Fuel consumption | 4.00 litres/100 km (25.0 km/l or 58.81 mpg) |
| Greenhouse gases | 92.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Die-cast aluminium, diamond |
| Rake (fork angle) | 25.0° |
| Trail | 92 mm (3.6 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swingarm |
| Front tire | 120/70-15 |
| Rear tire | 160/60-15 |
| Front brakes | Double disc. 4-piston. Hydraulic. Optional ABS. |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc. Hydraulic. Optional ABS. |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 222.0 kg (489.4 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1445 mm (56.9 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1580 mm (62.2 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 3.60 litres (3.8 US quarts) |
| Other specifications | |
| Color options | White/red/black |
| Starter | Electric |
| Electrical | 12V 8.6 Ah battery |
| Comments | Windscreen. Limited edition. Sold in Japan. |
