General information |
|
Motorcycle name
|

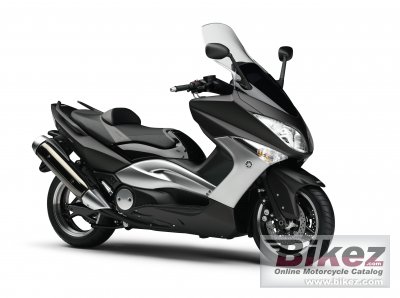

Yamaha TMAX Tech Max |
|
Year model
|
2011 |
|
Type
|
Scooter |
|
Rating
|
2.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
499.0 ccm (30.45 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
42.9 HP (31.3 kW)) @ 7500 RPM |
|
Torque
|
46.4 Nm (4.7 kgf-m or 34.2 ft.lbs) @ 6500 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
66.0 x 73.0 mm (2.6 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
die-cast aluminium chassis |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Swingarm |
|
Front tire
|
120/70-15 |
|
Rear tire
|
160/60-15 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
221.0 kg (487.2 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1445 mm (56.9 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1580 mm (62.2 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Silver/black |
|
Starter
|
Electric |
