General information |
|
Motorcycle name
|

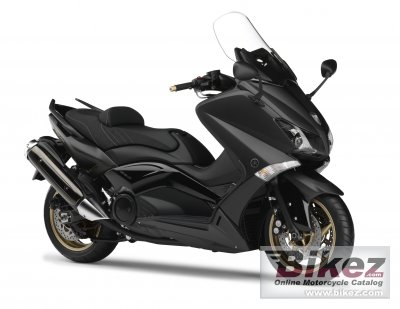

Yamaha TMAX Black Max |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
499.0 ccm (30.45 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Engine details
|
Forward inclined parallel cylinders |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
66.0 x 73.0 mm (2.6 x 2.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital TCI: Transistor Controlled Ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiple-disc automatic centrifugal |
|
Driveline
|
V-belt |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
43mm telescopic forks |
|
Rear suspension
|
Swingarm |
|
Front tire
|
120/70-H15 |
|
Rear tire
|
160/60-H15 |
|
Front brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Seat
|
dual seat with golden stitching |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
221.8 kg (489.0 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1445 mm (56.9 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
775 mm (30.5 inches) |
|
Ground clearance
|
124 mm (4.9 inches) |
|
Wheelbase
|
1580 mm (62.2 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Raven black duo-tone. |
|
Starter
|
Electric |
|
Instruments
|
Automotive-style dashboard |
|
Comments
|
2-step adjustable windscreen. |
