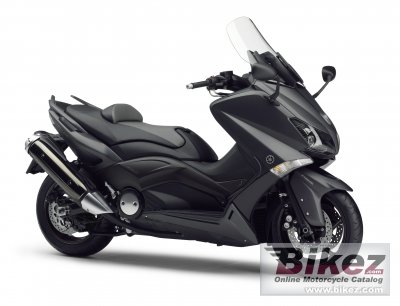

Yamaha TMAX ABS 20132013 Yamaha TMAX ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Thanks to a 530cc engine, belt drive and light aluminium chassis, you´ll enjoy best-ever torque from standing, and precise handling that lets you cut through rush hour traffic. Large diameter wheels and reactive suspension mean great agility on every kind of road. The ABS model is available in several countries. |
| General information | |
|---|---|
| Model name | Yamaha TMAX ABS |
| Year model | 2013 |
| Type | Scooter |
| Price as new | US$ 8590. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 499.0 ccm (30.45 cubic inches) |
| Type of engine | Twin, four-stroke |
| Engine details | Forward inclined parallel cylinders |
| Compression | 11.0:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCI: Transistor Controlled Ignition |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiple-disc automatic centrifugal |
| Driveline | V-belt |
| Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | die-cast aluminium |
| Front suspension | 43mm telescopic forks |
| Rear suspension | Swingarm |
| Front tire | 120/70-H15 |
| Rear tire | 160/60-H15 |
| Front brakes | Single disc. ABS |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 227.0 kg (500.4 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1445 mm (56.9 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 124 mm (4.9 inches) |
| Wheelbase | 1580 mm (62.2 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Color options | Raven |
| Starter | Electric |
| Factory warranty | 1 Year (Limited Factory Warranty) |
| Comments | 2-step adjustable windscreen. |
