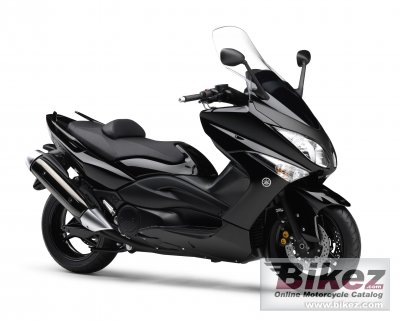

Yamaha TMAX ABS 20112011 Yamaha TMAX ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Completed by touches like automotive-style instruments, illuminated underseat storage, a large glove box and sumptuous dual seat, the TMAX turns every journey into a pleasure. |
| General information | |
|---|---|
| Model name | Yamaha TMAX ABS |
| Model year | 2011 |
| Category | Scooter |
| Rating | 2.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | Twin, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCI: Transistor Controlled Ignition |
| Lubrication system | Semi-dry-sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiple-disc automatic centrifugal |
| Driveline | V-belt |
| Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details | Dual-chamber airbox, air-injection system and exhaust catalyst technology reduce air pollution |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 43mm telescopic forks |
| Rear suspension | Swingarm |
| Front tire | 120/70-H15 |
| Rear tire | 160/60-H15 |
| Front brakes | Single disc. Anti-lock braking |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc. Anti-lock braking |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Dry weight | 205.0 kg (451.9 pounds) |
| Weight incl. oil, gas, etc | 221.8 kg (489.0 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1445 mm (56.9 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 124 mm (4.9 inches) |
| Wheelbase | 1580 mm (62.2 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Starter | Electric |
| Carrying capacity | Storage box under the seat spacious enough for a large full-face helmet |
