Yamaha TMAX ABS 20102010 Yamaha TMAX ABS specifications, pictures, reviews and rating |

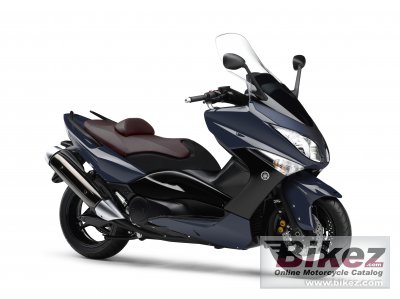

 2010 Yamaha TMAX ABS. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The sturdy but lightweight, aluminium chassis, large diameter wheels and responsive suspension mean great levels of agility whether you’re on a cobbled side street or a busy highway. In several countries, an ABS version is also available. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TMAX ABS |
| Model year | 2010 |
| Category | Scooter |
| Rating | 2.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 42.9 HP (31.3 kW)) @ 7500 RPM |
| Torque | 45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 6500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Swingarm |
| Front tire | 120/70-15 |
| Rear tire | 160/60-15 |
| Front brakes | Double disc. ABS |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Overall height | 1445 mm (56.9 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1580 mm (62.2 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Gun smoke, high tech silver, midnight black |
| Starter | Electric |
