Yamaha Tmax 500 20042004 Yamaha Tmax 500 specifications, pictures, reviews and rating |

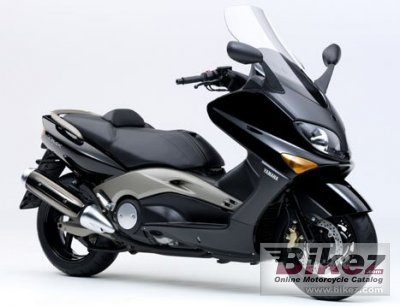

 2004 Yamaha Tmax 500. Picture credits - Yamaha. Submit more pictures. |
|
| Yamaha's profilation of this bike |
| With a range of significant technical changes being introduced for 2004, the latest TMAX offers even higher levels of engine and chassis performance. The overall horsepower and torque output of the 500cc twin cylinder 4-stroke engine is increased by the fitment of a new electronic fuel injection system, and compression ratio has been raised to 11:1. |
| General information | |
|---|---|
| Model name | Yamaha Tmax 500 |
| Model year | 2004 |
| Category | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 449.0 ccm (27.40 cubic inches) |
| Engine type | Two cylinder boxer, four-stroke |
| Power output | 43.7 HP (31.9 kW)) @ 6500 RPM |
| Torque | 47.6 Nm (4.9 kgf-m or 35.1 ft.lbs) @ 4850 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Fuel system | Injection |
| Cooling system | Liquid |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Telescopic Fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-14 |
| Rear tire | 150/70-14 |
| Front brakes | Double disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Dry weight | 205.0 kg (451.9 pounds) |
| Power/weight ratio | 0.2132 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall height | 1410 mm (55.5 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1575 mm (62.0 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha Tmax 500 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2004 Yamaha Tmax 500 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2004 Yamaha Tmax 500:  (80.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
