Yamaha TMax 500 20022002 Yamaha TMax 500 specifications, pictures, reviews and rating |

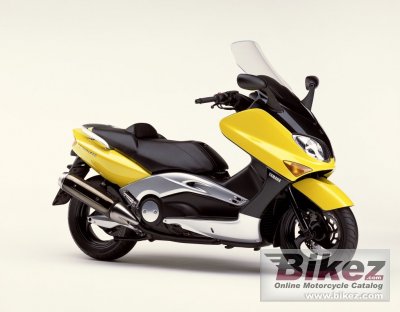

 2002 Yamaha TMax 500. Picture by Yamaha. Published with permission.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model | Yamaha TMax 500 |
| Year of manufacture | 2002 |
| Type | Scooter |
| Rating | 3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 499.0 ccm (30.45 cubic inches) |
| Type of engine | Twin, four-stroke |
| Output | 40.0 HP (29.2 kW)) @ 7000 RPM |
| Torque | 45.8 Nm (4.7 kgf-m or 33.8 ft.lbs) @ 5500 RPM |
| Compression | 10.1:1 |
| Bore x stroke | 66.0 x 73.0 mm (2.6 x 2.9 inches) |
| Valves per cylinder | 4 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-14 M/C 55S |
| Rear tire | 150/70-14 M/C 66S |
| Front brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Dry weight | 197.0 kg (434.3 pounds) |
| Power/weight ratio | 0.2030 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall height | 1410 mm (55.5 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1575 mm (62.0 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha TMax 500 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Yamaha TMax 500 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Engine performance for the 2002 Yamaha TMax 500:  (81.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
