Yamaha TDR 125 20022002 Yamaha TDR 125 specifications, pictures, reviews and rating |

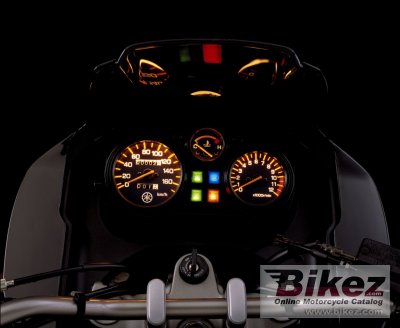

2002 Yamaha TDR 125. Picture by Yamaha. Published with permission.. Submit more pictures. |
|
General information | |
---|---|
Model | Yamaha TDR 125 |
Year | 2002 |
Category | Allround |
Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission | |
Displacement | 125.0 ccm (7.63 cubic inches) |
Engine type | Single cylinder, two-stroke |
Power | 15.0 HP (10.9 kW)) @ 7000 RPM |
Torque | 14.7 Nm (1.5 kgf-m or 10.8 ft.lbs) @ 7000 RPM |
Compression | 6.6:1 |
Bore x stroke | 56.0 x 50.7 mm (2.2 x 2.0 inches) |
Cooling system | Liquid |
Chassis, suspension, brakes and wheels | |
Front wheel travel | 180 mm (7.1 inches) |
Rear wheel travel | 180 mm (7.1 inches) |
Front tire | 100/90-18 56P |
Rear tire | 130/80-17 65P |
Front brakes | Single disc |
Diameter | 282 mm (11.1 inches) |
Rear brakes | Single disc |
Diameter | 220 mm (8.7 inches) |
Physical measures and capacities | |
Dry weight | 128.0 kg (282.2 pounds) |
Power/weight ratio | 0.1172 HP/kg |
Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
Overall height | 1295 mm (51.0 inches) |
Overall length | 2120 mm (83.5 inches) |
Overall width | 840 mm (33.1 inches) |
Ground clearance | 270 mm (10.6 inches) |
Wheelbase | 1405 mm (55.3 inches) |
Other specifications | |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 02 Yamaha TDR 125 discussion group or the general Yamaha discussion group. |
Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Yamaha TDR 125 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
Rating sample for this Yamaha bike | |
Value for money for the 2002 Yamaha TDR 125: (85.4 out of 100) Click here for complete rating. You can also compare bikes. |
