General information |
|
Model
|

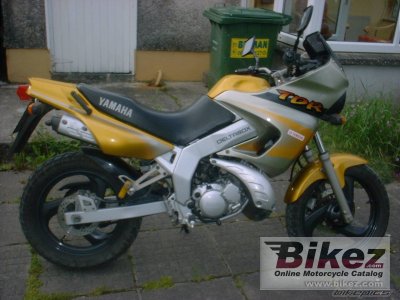

Yamaha TDR 125 |
|
Model year
|
2001 |
|
Category
|
Allround |
|
Rating
|
3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 7000 RPM |
|
Torque
|
14.7 Nm (1.5 kgf-m or 10.8 ft.lbs) @ 7000 RPM |
|
Top speed
|
105.0 km/h (65.2 mph) |
|
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
100/90-P18 |
|
Rear tire
|
130/80-P17 |
|
Front brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
128.0 kg (282.2 pounds) |
|
Power/weight ratio
|
0.1172 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1405 mm (55.3 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
