General information |
Model name
|

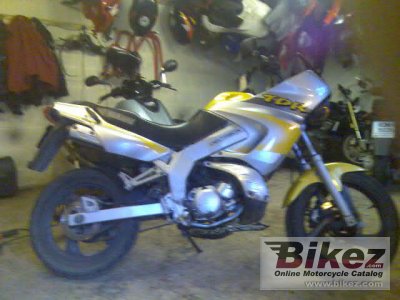

Yamaha TDR 125 |
Model year
|
1999 |
Category
|
Super motard |
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
125.0 ccm (7.63 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power output
|
15.0 HP (10.9 kW)) @ 7000 RPM |
Torque
|
15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 7000 RPM |
Top speed
|
108.0 km/h (67.1 mph) |
Compression
|
6.6:1 |
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Fuel consumption
|
4.80 litres/100 km (20.8 km/l or 49.00 mpg) |
Greenhouse gases
|
111.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Front wheel travel
|
180 mm (7.1 inches) |
Rear wheel travel
|
180 mm (7.1 inches) |
Front tire
|
100/90-18 |
Rear tire
|
130/80-17 |
Front brakes
|
Single disc |
Diameter
|
252 mm (9.9 inches) |
Rear brakes
|
Single disc |
Diameter
|
189 mm (7.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
139.0 kg (306.4 pounds) |
Front percentage of weight
|
48.0 |
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
Wheelbase
|
1405 mm (55.3 inches) |
Fuel capacity
|
11.00 litres (2.91 US gallons) |
Other specifications |
Starter
|
Electric |
