General information |
|
Model name
|

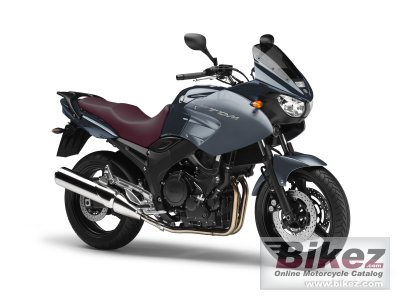

Yamaha TDM 900A |
|
Year of manufacture
|
2010 |
|
Type
|
Allround |
|
Rating
|
3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
897.0 ccm (54.73 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
85.0 HP (62.1 kW)) |
|
Torque
|
88.8 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM |
|
Compression
|
10.4:1 |
|
Bore x stroke
|
92.0 x 67.5 mm (3.6 x 2.7 inches) |
|
Valves per cylinder
|
5 |
|
Fuel system
|
Injection. Electronic Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium, diamond shaped |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
133 mm (5.2 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
223.0 kg (491.6 pounds) |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1290 mm (50.8 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gun metallic, midnight black |
|
Starter
|
Electric |
