Yamaha's profilation of this bike |
It is the ultimate in versatility, with a flexible big-twin powerplant, well-balanced chassis and excellent comfort for both rider and passenger. With ABS. |
General information |
Motorcycle name
|

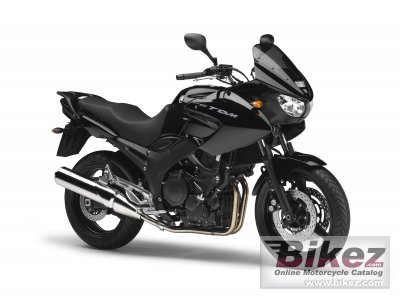

Yamaha TDM 900A |
Year model
|
2009 |
Type
|
Allround |
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
897.0 ccm (54.73 cubic inches) |
Type of engine
|
Twin, four-stroke |
Effect
|
85.0 HP (62.1 kW)) |
Torque
|
88.8 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM |
Compression
|
10.4:1 |
Bore x stroke
|
92.0 x 67.5 mm (3.6 x 2.7 inches) |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Clutch
|
Wet, multiple-disc coil spring |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium |
Trail
|
114 mm (4.5 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
150 mm (5.9 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
133 mm (5.2 inches) |
Front tire
|
120/70-ZR18 |
Rear tire
|
160/60-ZR17 |
Front brakes
|
Double disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
225.0 kg (496.0 pounds) |
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
Overall height
|
1290 mm (50.8 inches) |
Overall length
|
2180 mm (85.8 inches) |
Ground clearance
|
160 mm (6.3 inches) |
Wheelbase
|
1485 mm (58.5 inches) |
Fuel capacity
|
20.00 litres (5.28 US gallons) |
Oil capacity
|
4.70 litres (4.97 US quarts) |
Other specifications |
Color options
|
Blue, black, silver |
