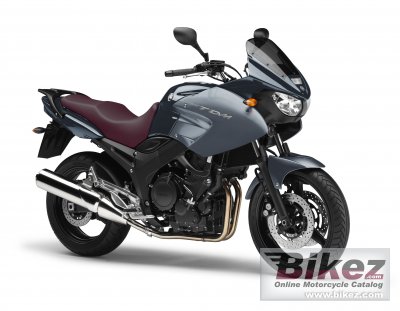

Yamaha TDM 900 20122012 Yamaha TDM 900 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The TDM900 is a universal performer, built to handle whatever you throw at it – from unforgettable touring trips with a passenger to your everyday commute through city streets. |
| General information | |
|---|---|
| Model | Yamaha TDM 900 |
| Year model | 2012 |
| Type | Allround |
| Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 897.0 ccm (54.73 cubic inches) |
| Type of engine | Twin, four-stroke |
| Engine details | Forward-inclined parallel cylinders |
| Effect | 85.0 HP (62.1 kW)) @ 7500 RPM |
| Torque | 88.8 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM |
| Compression | 10.4:1 |
| Bore x stroke | 92.0 x 67.5 mm (3.6 x 2.7 inches) |
| Valves per cylinder | 5 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Driveline | Constant Mesh, 6-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium Deltabox, Diamond Shaped |
| Rake (fork angle) | 25.0° |
| Trail | 114 mm (4.5 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 133 mm (5.2 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. Hydraulic. Optional ABS. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hydraulic. Optional ABS. |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 199.0 kg (438.7 pounds) |
| Weight incl. oil, gas, etc | 223.0 kg (491.6 pounds) |
| Power/weight ratio | 0.4272 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height | 1290 mm (50.8 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Color options | Midnight black |
| Starter | Electric |
| Comments | ABS brakes adds 3 kg weight. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Yamaha TDM 900 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
