Yamaha TDM 900 20082008 Yamaha TDM 900 specifications, pictures, reviews and rating |

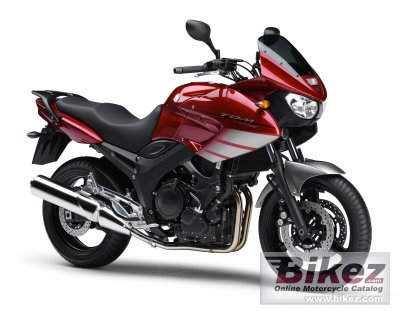

 2008 Yamaha TDM 900. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| If you love all kinds of travel, here is the motorcycle that will take you wherever you want to go. The TDM900 is an ultra-versatile performer with a sportbike’s soul, created to do it all, from taking you on unforgettable touring trips through the mountains to your everyday, workaday commuting trip. |
| General information | |
|---|---|
| Model name | Yamaha TDM 900 |
| Model year | 2008 |
| Category | Sport |
| Rating | 3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 897.0 ccm (54.73 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 85.0 HP (62.1 kW)) @ 7500 RPM |
| Torque | 88.8 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM |
| Compression | 10.4:1 |
| Bore x stroke | 92.0 x 67.5 mm (3.6 x 2.7 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium, diamond shaped |
| Front suspension | Telescopic forks |
| Rear suspension | Swingarm (link suspension) |
| Front tire | 120/70-ZR18 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 192.0 kg (423.3 pounds) |
| Power/weight ratio | 0.4428 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height | 1290 mm (50.8 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Other specifications | |
| Starter | Electric |
