2004 Yamaha TDM 900

Yamaha TDM 900 2004


2004 Yamaha TDM 900 specifications, pictures, reviews and rating

2004 Yamaha TDM 900

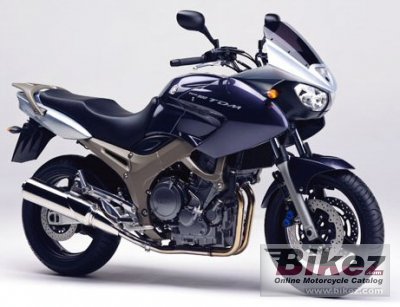

2004 Yamaha TDM 900. Picture credits - Yamaha. Submit more pictures.
Yamaha's profilation of this bike
Powered by a gutsy large-capacity twin-cylinder engine housed in a stiff Deltabox chassis, and running with long-travel front and rear suspension, the TDM900’s unique specification has attracted a devoted following throughout Europe. For 2004 the TDM is equipped with an immobiliser, and is offered in a new Dark Grey Metallic option which comes with a black frame to create a very special and exclusive looking package.

General information
Model Yamaha TDM 900
Year 2004
Category Sport touring
Rating 3.9  See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Displacement 889.0 ccm (54.25 cubic inches)
Engine type Twin, four-stroke
Compression 10.4:1
Bore x stroke 92.0 x 67.5 mm (3.6 x 2.7 inches)
Chassis, suspension, brakes and wheels
Front wheel travel 150 mm (5.9 inches)
Rear wheel travel 133 mm (5.2 inches)
Front tire 120/70-ZR18
Rear tire 160/60-ZR17
Rear brakes Single disc
Physical measures and capacities
Dry weight 190.0 kg (418.9 pounds)
Seat height 825 mm (32.5 inches) If adjustable, lowest setting.
Overall height 1290 mm (50.8 inches)
Overall length 2180 mm (85.8 inches)
Overall width 800 mm (31.5 inches)
Ground clearance 160 mm (6.3 inches)
Wheelbase 1485 mm (58.5 inches)
Other specifications
Color options Galaxy blue, Blue stone, Diamond black
