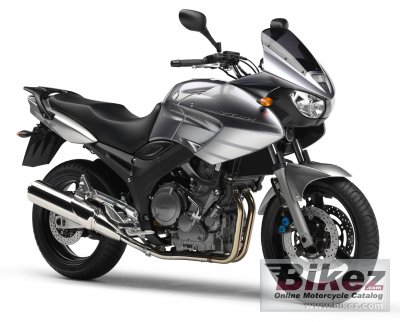

Yamaha TDM 900 - A 20062006 Yamaha TDM 900 - A specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Over the years our TDM has established itself as a firm favourite with riders who want everything from their motorcycles. The TDM is a real all-rounder, powered by a fuel-injected ten-valve parallel twin with tons of midrange stomp. And it’s easy to handle too, with a sturdy aluminium frame, monobloc four-piston front brake calipers and a superbly styled upper fairing that keeps you cool, calm and collected on long rides. We even have an ABS version for extra braking confidence. |
| General information | |
|---|---|
| Model | Yamaha TDM 900 - A |
| Model year | 2006 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 897.0 ccm (54.73 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 85.0 HP (62.1 kW)) @ 7500 RPM |
| Torque | 88.8 Nm (9.1 kgf-m or 65.5 ft.lbs) @ 9100 RPM |
| Top speed | 217.0 km/h (134.8 mph) |
| Compression | 10.4:1 |
| Bore x stroke | 92.0 x 67.5 mm (3.6 x 2.7 inches) |
| Valves per cylinder | 5 |
| Fuel system | Injection. Electronic fuel injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium, diamond shaped |
| Trail | 114 mm (4.5 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swingarm (link-type suspension) |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-ZR18 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. ABS. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS. |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 193.0 kg (425.5 pounds) |
| Weight incl. oil, gas, etc | 223.0 kg (491.6 pounds) |
| Power/weight ratio | 0.4405 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height | 1290 mm (50.8 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Coolant | 2.00 litres (0.53 US gallons) |
| Spark plugs | NGK DPR8EA-9, NGK DPR8EIX-9 |
| Idle speed | 1100-1200 RPM |
| Chain links | 118 |
| Sprockets | 16/42 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
