General information |
|
Model
|

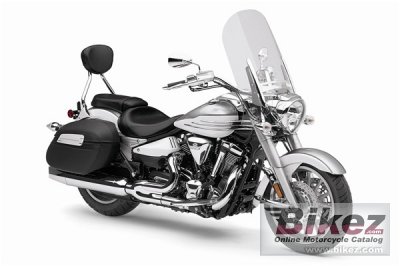

Yamaha Stratoliner |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 15690. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1851.9 ccm (113.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Four pushrod-activated valves and two spark plugs per cylinder |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
100.0 x 118.0 mm (3.9 x 4.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Twin-bore fuel injection, w/throttle position sensor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
TCI: Transistor Controlled Ignition |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Emission details
|
0xygen sensor and three-way catalyst reduce emissions. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum |
|
Front suspension
|
46mm telescopic fork with adjustable preload |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single shock, 4.3inch travel |
|
Front tire
|
130/70-18 |
|
Rear tire
|
190/60-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Wheels
|
12-spoke cast |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
363.8 kg (802.0 pounds) |
|
Seat height
|
706 mm (27.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1514 mm (59.6 inches) |
|
Overall length
|
2581 mm (101.6 inches) |
|
Overall width
|
1100 mm (43.3 inches) |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Color options
|
Liquid Silver/Pearl White |
|
Instruments
|
Classic clock-style instrumentation complements Stratoliner S’s neo-retro look and contains analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer. |
|
Light
|
Multi-reflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look |
|
Factory warranty
|
1 Year (Limited Factory Warranty) |
